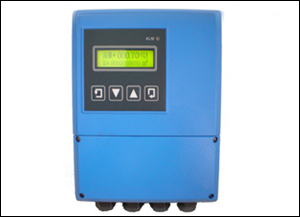

Special-purpose electromagnetic flowmeter

On top of the general-purpose converter, many optional functions are available to be chosen from, such as power-off record and compensation, flow data loging, flow batch processing, remote controller, etc.

1. MBmag model converter is capable of recording power-on time, power-off time and flow rate at that time. The period of power failure and flow compensation can therefore be calculated and logged.
2. Flow batch processing can be carried out by taking advantage of the input contact fo converter
3. Remote controller can be used for the hazardous site.

Features

1. Programmable low frequency square wave field excitation, excitation frequency: mode 1 (1/8), mode 2 (1/16), mode 3 (1/32) of power frequency;
2. Excitation current can be selected from 100mA to 500mA and connnected with a variety of sensor made by various manufacturer;
3. Bi-directional measurement, flow ranges form 0.1 to 15 m/s;
4. Empty pipe detection and suitable for various liquid;
5. AC power ranges from 85VAC - 250VAC, 45 - 63Hz;
6. DC power ranges from 16VDC - 36VDC;
7. Isolated RS485/RS232C communication interface supporting MODBUS, PROFIBUS-DP and HART;
8. Various display language;
9. Three internal totalizers: forward totalizer, backward totalizer and net totalizer;
10. Signal outputs: analog output:0-10mA or 4-20mA, pulse output: 0 - 5000Hz, OC gate alarm output;
11. Sensor size: 3 - 3000mm.

Parameters
