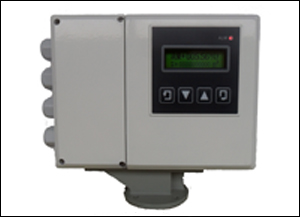

High-frequency slurry-type electromagnetic flowmeter converter

To achieve a stable measurement of slurry, 25Hz excitation frequency and latest noise-suppression methods are applied to reduce the flow noise effectively.

Features

1. Programmable low frequency square wave field excitation: 25Hz;
2. Excitation current can be selected from 100mA to 500mA and connnected with a variety of sensor made by various manufacturer;
3. Bi-directional measurement, flow ranges form 0.1 to 15 m/s;
4. Empty pipe detection and suitable for various liquid;
5. AC power ranges from 85VAC - 250VAC, 45 - 63Hz;
6. DC power ranges from 16VDC - 36VDC;
7. Isolated RS485/RS232C communication interface supporting MODBUS, PROFIBUS-DP and HART;
8. Various display language;
9. Three internal totalizers: forward totalizer, backward totalizer and net totalizer;
10. Signal outputs: analog output:0-10mA or 4-20mA, pulse output: 0 - 5000Hz, OC gate alarm output;
11. Sensor size: 3 - 3000mm.

Parameters
